Split sash
windows with black
aluminum frames and
safety glass are standard |
One piece roof prevents
water infiltration |

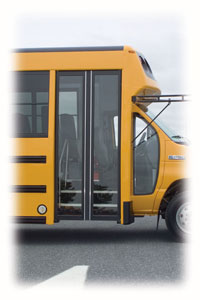

A 32" electric entrance
door, with manual emergency release
is standard |
|
Extended side panels
provide added pedestrian safety.
Sealed entrance door
prevents infiltration of exterior elements. |
 A water deflection system is
built into the body to prevent water
infiltration |
|
A multi-directional, energy
absorbing body mounting system, ensures
improved passenger comfort and eliminates
the need for periodic tightening of body
bolts. |
 |
Superior insulation extends
body durability and improves energy
efficiencies |
Gravel shields protect lower
front body sections
 |
 |
Led marker and clearance
lights reduce maintenance and possible water
infiltration. |
White roof is standard
for passenger comfort
 |
|
Extra wide modified oval
body design maximizes useable floor space. |
|
Reinforced side impact
passenger protection and body durability |
A modern interior design,
improved fit and finish, enhanced safety and
reliability functionality. |
|

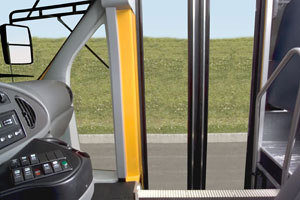

Maximum
visibility of loading zone is provided by
fully glassed entrance door and an improved
"More-view" window.
 |
 |
 |
 |
Improved
double leaf access door incorporates
adjustable hinges and conforms to new lift
platform standards |
 |
Integrated switch panel
for improved ergonomics and visibility of
loading zone. |
Floor mounted track
seating offers increased flexibility of
interior. |
| An eight
inch safety zone has been incorporated into
the rear wall. |
 |
Mounting tracks allow for
easy installation of various accessories
Increased interior
height and floor width offer improved
mobility and convenience. |
| Standard
Specifications:
Model: |
100 |
100A |
200 |
200C |
| |
|
LENGTH
OVERALL FORD / GM |
232.5/244.5 |
252.5/264.5 |
278.5/291.0 |
278.5/291.0 |
| HEIGHT
OVERALL FORD / GM |
111/110 |
111/110 |
113/112 |
118/118 |
| WIDTH
OVERALL |
96 |
96 |
96 |
96 |
| INTERIOR
HEIGHT AT CENTER LINE |
76 |
76 |
76 |
76 |
| INTERIOR
FLOOR LENGTH |
131.25 |
151.25 |
177.25 |
177.25 |
| INTERIOR
WIDTH AT HIP |
93 |
93 |
93 |
93 |
| NUMBER OF
ROWS |
4 |
5 |
5 |
5 |
| MAXIMUM
PASSENGER CAPACITY |
22 |
28 |
30 |
24 |
|
